50831002
PWO B10THx20/1P-SC-S 2X1`+2X3/4` Int Hex AISI 316
Produktnummer: 20250
EAN: P50831002
Lagerbeholdning:
inkl. mva.

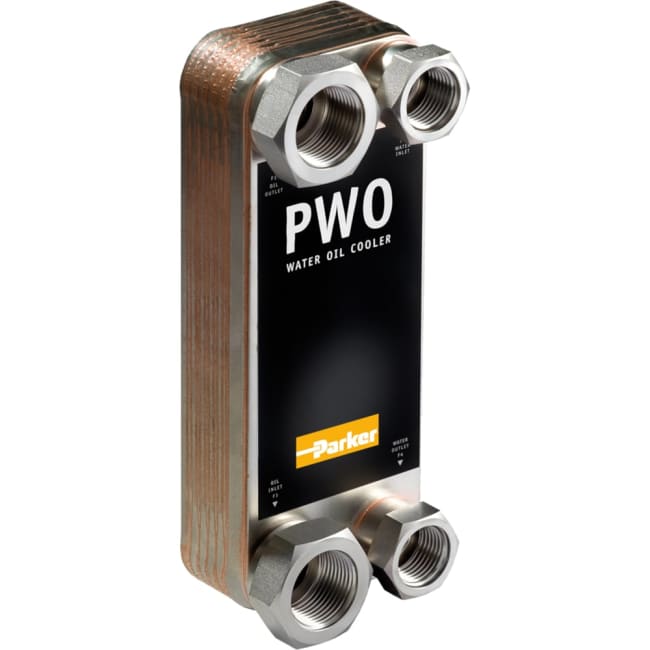

The Parker PWO is a compact and lightweight Water Fluid Cooler (also known as a brazed plate heat exchanger) with a high cooling capacity for its size. Please use the PWO Sizing Software on the Product Support Tab for proper cooler sizing.
The Parker PWO is a compact and lightweight water/fluid cooler with a high power exchange density ratio. The cooling elements consist of corrugated channel plates sandwiched between the front and rear cover plates.
| Parker def attributter | |
|---|---|
| Størrelse | B10T |
| Antall elementer | 20 |
| Parker desc attributter | |
|---|---|
| Maksimalt driftstrykk | 31 barg |
| Produkt type | PWO B10THx20/1P-SC-S 2x1" INT HEX 2x3/4" INT HEX |
| Strømningshastighet | 150 L/min |
| Maksimal kjølekapasitet | 44 kW (at oil flow 150 liter/min and ΔT 40°) |
| Port størrelse | 2x 1" (INT HEX) + 2x 3/4" (INT HEX) |
| Maksimal driftstemperatur | 225 °C |
| Konstruksjonsmaterialer | Copper |
| Divisjon Kun fasettert | Hydraulic Actuator Division Europe |
| Bruksområde | Mobile |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | PWO B10THx20/1P-SC-S 2x1" INT HEX + 2x3/4" INT HEX |
| Opprinnelsesland | CN |
| Toll kode | 84195080 |
| Vekt | 4.3800 |
| Vekt måleenhet | KG |
