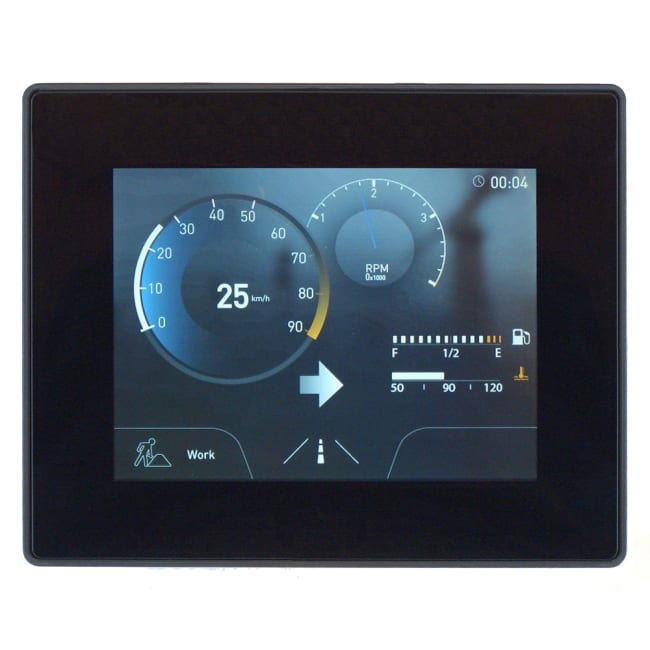

IQAN VA 20085164 PARKER IQAN-MD4-5-
IQAN-MD4 master display module 5.7" with touchscreen (-M19 version)
The IQAN-MD4-5-T1E2-M19 is a master display unit compliant with the IQANdesign platform system. The unit is fully programmable for use in any machine application as a master controller, a graphical user interface and as a CAN gateway.
The IQAN-MD4 lets you use the full benefits from IQANdesign tools and simplifies the HMI design.The simplified design process, with auto-generated diagnostic measurements and adjustments, saves valuable time. IQAN gives you a high level tool chain for machine control and HMI development.
IQAN-MD4-5-T1E2-M19 comes with a 14 cm (5.7") touch screen display with IP camera support, and is manufactured to be weatherproof for outdoor use.
M19 version has a limited performance on brightness, viewing angles, contrast and temperature range compared to the standard IQAN-MD4-5-T1E2 version, offering a very cost-effective option for the customers with lower level display requirements. See instruction book for details.
| Parker desc attributter | |
|---|---|
| Inntrengningsbeskyttelsesvurdering | 65 |
| Skjermtype | 5.7" Color TFT with PCAP Touchscreen |
| Kommunikasjonsgrensesnitt | 2x Ethernet |
| Minimum driftstemperatur | -20 °C |
| Elektrisk tilkobling | Deutsch DTM |
| Inngangsspenning | 9 to 32 VDC |
| Spesifikasjoner møtt | 2004/108/EC |
| Antall innganger | 10 |
| Maksimal driftstemperatur | 70 °C |
| Antall utganger | 4 |
| Divisjon Kun fasettert | Electronic Motion and Controls Division |
| Parker def attributter | |
|---|---|
| Modellnummer | MD4-5-T1E2-M19 |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | IQAN-MD4-5-T1E2-M19 |
| Produktserie navn | Master Display module - IQAN-MD4 |
| Opprinnelsesland | SE |
| Toll kode | 85371098 |
| Vekt | 0.8570 |
| Vekt måleenhet | KG |
