20085111

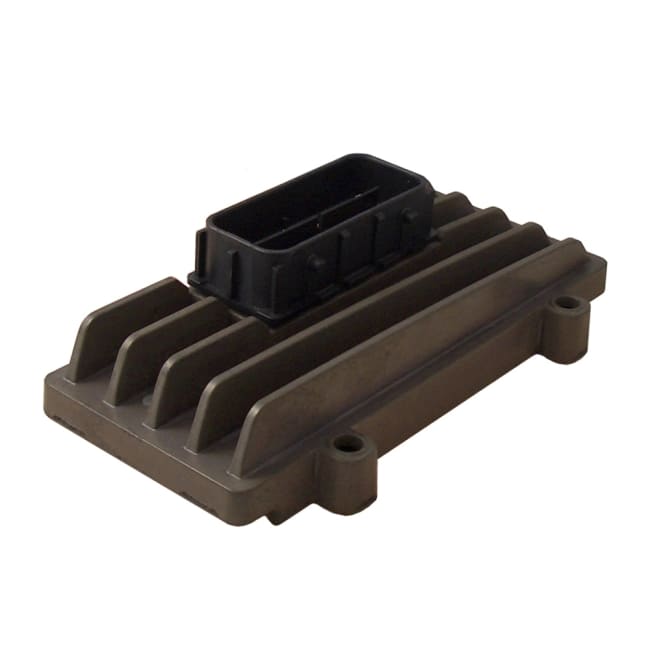

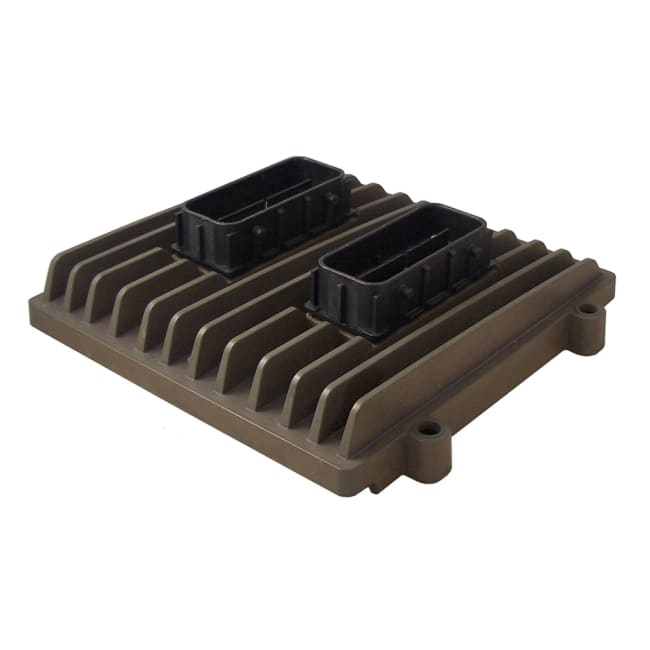

IQAN-MC4 Controller Module MC41 Perf.
Produktnummer: 14298
EAN: P20085111
Lagerbeholdning:
inkl. mva.
IQAN-MC41 master controller for mobile hydraulic systems and vehicles
The IQAN-MC41 controller is the lowest I/O count module in the MC4 family. It is best for smaller applications such as task-oriented control, implementing single features on a vehicle (valve driver for auxiliary hydraulic function), or to act as an additional controller in systems where the main controller does not provide enough I/O for the system.
| Parker desc attributter | |
|---|---|
| Husmateriale | Aluminum |
| Industri | Transportation |
| Inntrengningsbeskyttelsesvurdering | IP65 |
| Kommunikasjonsgrensesnitt | 2x CAN |
| Elektrisk tilkobling | Molex MX123 |
| Programvare | IQANdesign platform |
| Spesifikasjoner møtt | CE |
| Utgangsstrøm vurdering | 2500 mA |
| Antall innganger | 18 |
| Antall utganger | 8 |
| Kontrollertype | Master Controller |
| Divisjon Kun fasettert | Electronic Motion and Controls Division |
| Parker def attributter | |
|---|---|
| Modellnummer | IQAN-MC41 |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | IQAN-MC41 Perf. 20085111 |
| Produktserie navn | Master controllers - IQAN-MC41/MC42/MC43 |
| Opprinnelsesland | SE |
| Toll kode | 8537109199 |
| Vekt | 0.3070 |
| Vekt måleenhet | KG |
