DG104/06SRHDCF

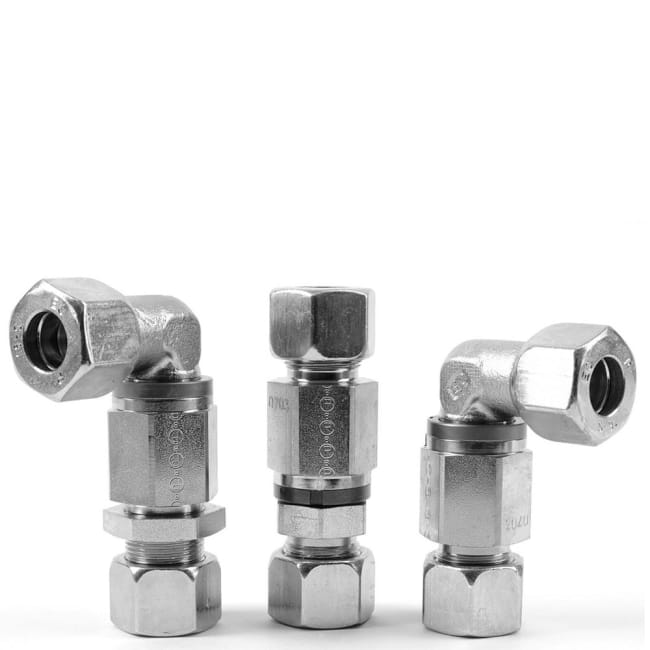

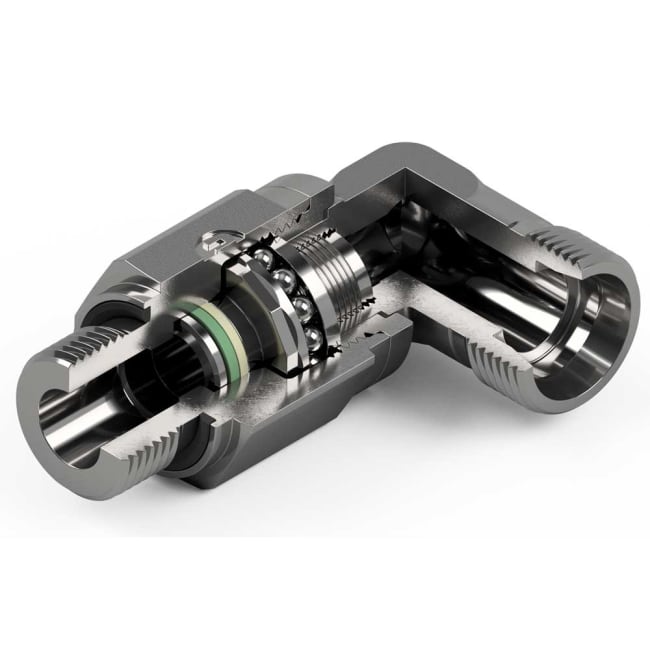

EO Ball bearing rotary union
Produktnummer: 37537
EAN: PDG104/06SRHDCF
Lagerbeholdning:
inkl. mva.
EO-PSR fittings produce high pressure, leak free connection of tubes and components in hydraulic systems. The basic function of EO-PSR is the controlled progressive bite of the EO-PSR into the tube due to a unique intenal geometry.
EO-PSR fittings produce high pressure, leak free connection of tubes and components in hydraulic systems. The basic function of EO-PSR is the controlled progressive bite of the EO-PSR into the tube due to a unique internal geometry.
Assembly process is according to the EO-Progressiv ring instruction. The design allows a 100 %-preassembly for an easier final assembly.
Features, advantages, benefits of the EO-PSR fitting range:
High pressure: EO-PSR can be used in applications of up to 800 bar (S series) and 500 bar (L series).
EO-LUB: Due to the special treatment of larger sized nuts (25S/28L and larger), the tightening torques of EO-PSR fittings have been reduced by 25%. This makes assembly easier and prevents underassembly.
Safe assembly: Two distinctive cutting edges provide a progressive increase of the tightening torque of the EO-PSR. The noticeable end point of assembly contributes to maximum safety of assembly. Multifunctional ring geometry prevents over-tightening.
EO-PSR is available worldwide and meets the requirements of the applicable standards for 24° cutting ring fittings.
Applications: Machine tools, mobile hydraulics, shipbuilding/offshore, transportation
Assembly process is according to the EO-Progressiv ring instruction. The design allows a 100 %-preassembly for an easier final assembly.
Features, advantages, benefits of the EO-PSR fitting range:
High pressure: EO-PSR can be used in applications of up to 800 bar (S series) and 500 bar (L series).
EO-LUB: Due to the special treatment of larger sized nuts (25S/28L and larger), the tightening torques of EO-PSR fittings have been reduced by 25%. This makes assembly easier and prevents underassembly.
Safe assembly: Two distinctive cutting edges provide a progressive increase of the tightening torque of the EO-PSR. The noticeable end point of assembly contributes to maximum safety of assembly. Multifunctional ring geometry prevents over-tightening.
EO-PSR is available worldwide and meets the requirements of the applicable standards for 24° cutting ring fittings.
Applications: Machine tools, mobile hydraulics, shipbuilding/offshore, transportation
| Parker desc attributter | |
|---|---|
| Teknologi | Fluid & Gas Handling |
| Industri | Transportation |
| Produkt stil | Stud Fitting |
| Produkt type | Hydraulic DIN Fittings |
| Divisjon | High Pressure Connectors Europe Division |
| Tilkobling 1 type | 24° Cone |
| Maksimal væsketemperatur | 572 °F |
| Merke | Ermeto |
| Tilkobling 1 størrelse | 6 mm Tube O.D. |
| Tetningsmateriale | NBR |
| Kropp materiale | Steel |
| For væske type | Steam |
| Bruksområde | Packaging |
| Konfigurasjon | Tube to Port |
| Form | Elbow 90° |
| Produkt serie | EO Heavy |
| Maksimalt driftstrykk | 420 bar |
| Nominell indre diameter | DN 5 |
| Minimum omgivelsestemperatur | -40 °F |
| Tetnings type | ED Seal |
| Tilkobling 2 type | BSPP |
| Maksimal omgivelsestemperatur | 572 °F |
| Inkludert tilbehør | Pre-assembled with Nut and EO-PSR Cutting Ring |
| Spesifikasjoner møtt | ISO 1179 |
| Tilkobling 2 størrelse | G 1/4 A inch Thread |
| Minimum væsketemperatur | -40 °F |
| Divisjon Kun fasettert | High Pressure Connectors Europe Division |
| Parker def attributter | |
|---|---|
| Form | Elbow 90° |
| Tilkobling 1 størrelse | 6 mm (O.D.) |
| Tilkobling 2 type | Male BSPP |
| Tilkobling 2 størrelse | G 1/4 A |
| Tilkobling 1 type | Male 24° Cone |
| Tilbehør inkludert | Pre-assembled with Nut and EO-PSR Cutting Ring |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | EO Ball bearing rotary union |
| Produktserie navn | Ermeto DIN Ball bearing rotary fittings 'Heavy Duty 360°' |
| Opprinnelsesland | DE |
| Toll kode | 73079290 |
| Vekt | 0.1480 |
| Vekt måleenhet | KG |
