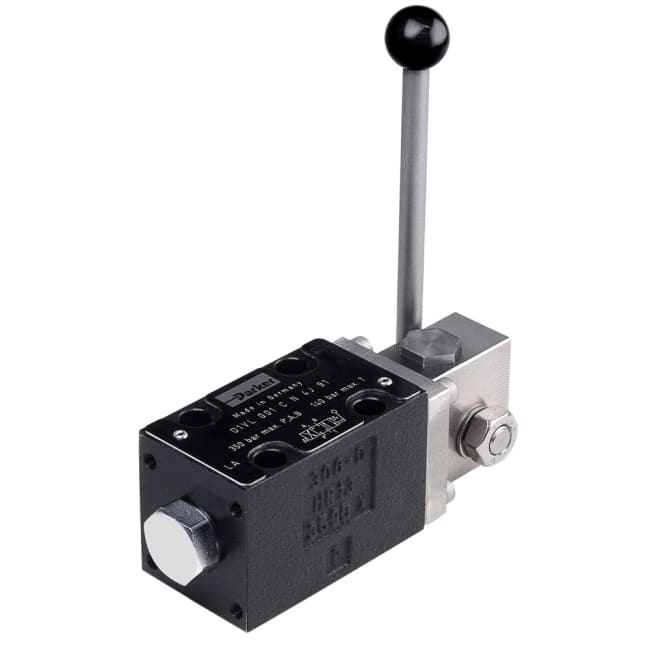

D1VLB001CN4J92 Hand Lever Side A

The direct operated directional control valves series D1VL  and D3DL with hand lever provide high functional limits (D1VL: up to 80 l/min, D3DL: up to 130 l/min) for safe operation also at high flow rates. Additonally they fit all hydraulic systems due to a large number of spool options.

Markets:
• Industrial

Features/Benefits:
• Compact, proven design that represents our long-term experience in hydraulics
• Wide range of spool options - fits all hydraulic systems
• All hand lever parts are made of stainless steel - for use even under rough conditions
• High functional limits – low forces resulting in safe operation also at high flow rates
• Shortest delivery time - no warehousing necessary
• Two different switching logic options

Applications:
• Suitable for general hydraulic applications

Technical specifications:
The D1VL is a 3 chamber 4/3 or 4/2 way directional control valve. The D3DL is a 5 chamber 4/3 or 4/2 way directional control valve. Both are equipped with a hand lever which is directly connected to the spool and can be located either on the A or B side. Spring offset and detent designs are available.
