D1MW020BNKWW
D1MW020BNKWW91
Produktnummer: 23966
EAN: PD1MW020BNKWW
Lagerbeholdning:
inkl. mva.

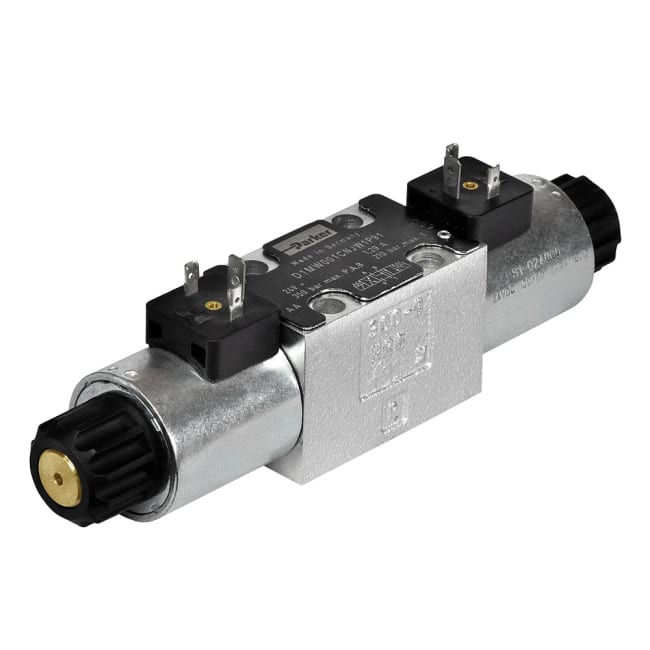

Parker's directional control valves series D1MW (NG06) / D3MW (NG10) are optimally suited for mobile applications due to an excellent surface protection. They provide high flow rates and a wide range of connector versions.
Parker's direct operated directional control valves series D1MW (NG06 / CETOP 03 / NFPA D03) and D3MW (NG10 / CETOP 05 / NFPA D05) feature an excellent corrosion protection of the valve body, the solenoid coil and the anchor tube which predestines these on/off valves for mobile applications.
The D1MW is based on the D1VW series, the D3MW on the D3W series. Both 3-chamber valves are direct operated by wet pin solenoids. They provide the typical solenoid connections for the mobile market such as AMP Junior Timer and DT04-2P “Deutsch”.
Markets:
• Mobile
Features/Benefits:
• Robust design - ideal for rough applications
• Wide range of spools and connectors - universally applicable, fits all hydraulic systems
• Anti corrosion coating according to DIN EN ISO 9227 NSS (standard for D3MW, optionally for D1MW) - excellent surface protection
• Extended manual override with rubber cover (optionally for D1MW)
• Short delivery time - no warehousing necessary
Applications:
• Construction equipment
• Material handling equipment
• Agriculture machinery
• Forestry equipment
The D1MW is based on the D1VW series, the D3MW on the D3W series. Both 3-chamber valves are direct operated by wet pin solenoids. They provide the typical solenoid connections for the mobile market such as AMP Junior Timer and DT04-2P “Deutsch”.
Markets:
• Mobile
Features/Benefits:
• Robust design - ideal for rough applications
• Wide range of spools and connectors - universally applicable, fits all hydraulic systems
• Anti corrosion coating according to DIN EN ISO 9227 NSS (standard for D3MW, optionally for D1MW) - excellent surface protection
• Extended manual override with rubber cover (optionally for D1MW)
• Short delivery time - no warehousing necessary
Applications:
• Construction equipment
• Material handling equipment
• Agriculture machinery
• Forestry equipment
| Parker def attributter | |
|---|---|
| Port tilkobling | NG06 / CETOP 03 |
| Merking | Standard |
| Spole posisjon | 2 positions, spring offset in position b, operated in position a |
| Magnetventil alternativ | Extended manual override with rubber cover |
| Magnetventil tilkobling | EN 175301-803 |
| Korrosjonsmotstand inkludert | Standard surface protection |
| Signal inngang | 12 V |
| Spole kode | 020 |
| Nominell størrelse | NG06 / CETOP 03 |
| Tetningsmateriale | NBR |
| Parker desc attributter | |
|---|---|
| Monteringsposisjon | Preferably Horizontal |
| Tetningsmateriale | NBR |
| Kropp materiale | Cast Iron |
| For væske type | Hydraulic Oil According to DIN 51524 |
| Maksimal driftstemperatur | 60 °C |
| Funksjon | 2-way |
| Monteringstype | Subplate |
| Produkt serie | Directional Control Valve |
| Maksimalt driftstrykk | 350 bar |
| Vekt | 1.5 kg |
| Minimum driftstemperatur | -25 °C |
| Maksimal strømningshastighet | 80 L/min |
| Aktiveringstype | Solenoid |
| Driftstype | Direct |
| Divisjon Kun fasettert | Hydraulic Valve Systems Division Europe |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | D1MW020BNKWW91 DIRECTIONAL CONTROL VALVE |
| Produktserie navn | Directional Control Valve - Series D1MW |
| Opprinnelsesland | DE |
| Toll kode | 84812010 |
| Vekt | 1.5000 |
| Vekt måleenhet | KG |
