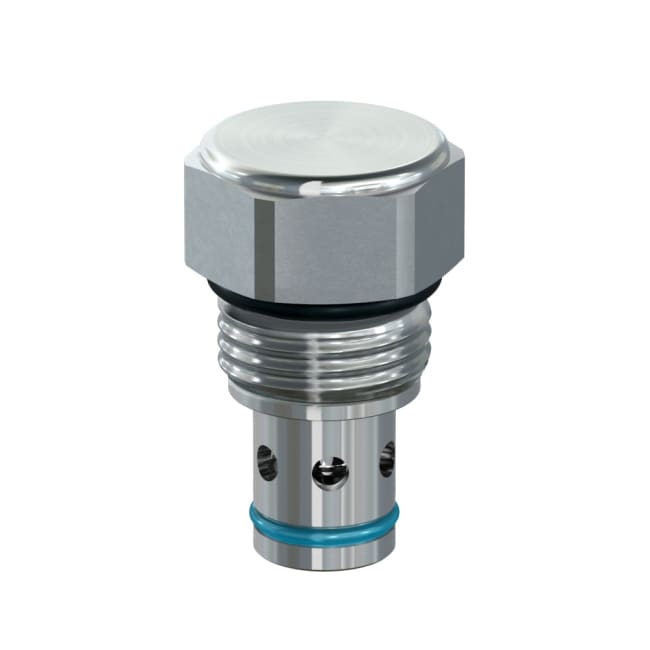

D04B2-0.2V
Check Valve
Produktnummer: 23937
EAN: PD04B2-0.2V
Lagerbeholdning:
inkl. mva.
REGIONAL - Parker ball type check valves are simple in their design and are used to block flow in one direction, and allow flow in the opposite direction. Capable of flows up to 42 GPM and pressures as high as 6000 psi.
Parker ball type check valves are designed with a ball held against a seat by a spring. This prevents flow in one direction at all times, but permits flow in the opposite direction when the pressure is high enough to lift the ball off its seat. The pressure at which reverse flow is permitted is called the cracking pressure. By using a hardened ball and finished seat, leakage rates are less than 5 drops per minute in the blocking direction.
| Parker desc attributter | |
|---|---|
| Driftstemperatur | -26 to 204 °C |
| Divisjon | Hydraulic Valve Systems Division Europe |
| Tetningsmateriale | Fluorocarbon |
| Kropp materiale | N/A |
| For væske type | Mineral-based Hydraulic Fluids |
| Installasjonsmoment | 50 Nm |
| Maksimal driftstemperatur | 204 °C |
| Funksjon | Standard Check |
| Hulrom størrelse | C10-2 |
| Maksimalt driftstrykk | 420 bar |
| Spenningstrykk | 0.2 bar |
| Vekt | 0.08 kg |
| Minimum driftstemperatur | -26 °C |
| Strømningshastighet | 90 L/min @ 100 Psi (7 bar) Nominal |
| Filter effektivitetsvurdering | SAE Class 4 |
| Maksimal strømningshastighet | 160 L/min |
| Ventil materiale | Steel (all parts) |
| Maksimal kinematisk viskositet | 45-2000 SSU (6 to 420 cSt) |
| Aktiveringstype | Pressure Sensing |
| Strømningsretning | 2-1 Checked |
| Lekkasjerate | 3 drops/min @ 6000 Psi (420 bar) |
| Maksimal innløpstrykk vurdering | 420 bar |
| Divisjon Kun fasettert | Hydraulic Valve Systems Division |
| Parker def attributter | |
|---|---|
| Maksimal strømningshastighet | 42 GAL/MIN, 160 L/MIN |
| Sprekketrykk | 3 PSI, 0.2 BAR |
| Tetningsmateriale | Fluorocarbon |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | CHECK VALVE CHECK VALVE |
| Produktserie navn | Standard Check Valves |
| Opprinnelsesland | CZ |
| Toll kode | 84812010 |
| Vekt | 0.0800 |
| Vekt måleenhet | KG |
