CE040C07N00N

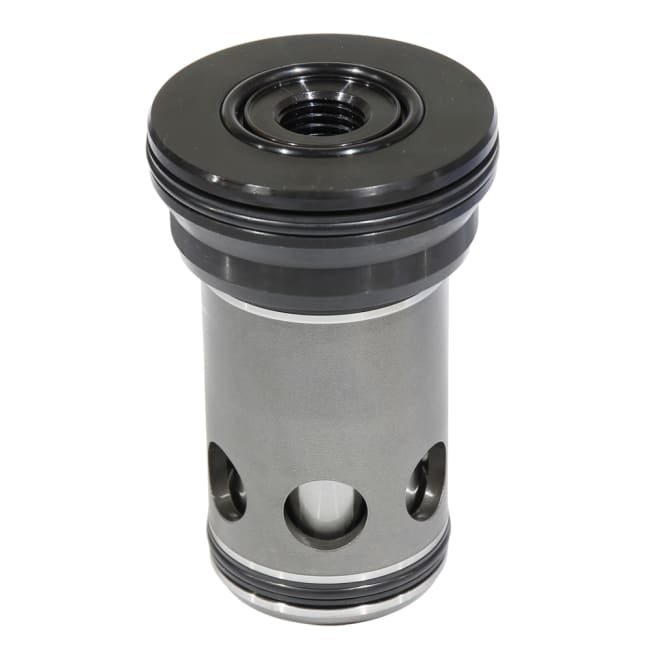

CE040C07N00N10 2-Way Slip-In Cartridge
Produktnummer: 23795
EAN: PCE040C07N00N
Lagerbeholdning:
inkl. mva.
2-way slip-in cartridge valves series CE and CP are hydraulically controlled seat valves which are universally applicable. The complete modular system covers all sizes.
Parker 2-way slip-in cartridge valves series CE and CP are hydraulically controlled, universally applicable seat valves that are designed for compact block installation. The complete modular system covers all sizes. Slip-in cartridge, cover and pilot system are valve elements that permit single and combined functions.
Series CE offers poppet and sleeve combinations for directional functions. Series CP offers a cartridge for pressure functions and has to be combined with corresponding covers.
Markets:
• Industrial
• Molding
• Oil & Gas
Features/Benefits:
• Installation cavity and mounting pattern according to ISO 7368 - proven design
• Complete modular system - allows for tailor-made customizations
• Wide range of variation - therefore universally applicable:
- 5 poppet shapes
- 5 poppet springs
- Optional seal between ports B and C
- Cover with adjustable stroke limitation
- Cover with mounting pattern for pilot valve assembly
- Combinations for complex functions
• Shortest delivery times - no warehousing necessary
Applications:
• General presses
• Die Cast
• Injection Molding
Series CE offers poppet and sleeve combinations for directional functions. Series CP offers a cartridge for pressure functions and has to be combined with corresponding covers.
Markets:
• Industrial
• Molding
• Oil & Gas
Features/Benefits:
• Installation cavity and mounting pattern according to ISO 7368 - proven design
• Complete modular system - allows for tailor-made customizations
• Wide range of variation - therefore universally applicable:
- 5 poppet shapes
- 5 poppet springs
- Optional seal between ports B and C
- Cover with adjustable stroke limitation
- Cover with mounting pattern for pilot valve assembly
- Combinations for complex functions
• Shortest delivery times - no warehousing necessary
Applications:
• General presses
• Die Cast
• Injection Molding
| Parker desc attributter | |
|---|---|
| Teknologi | Hydraulics |
| Divisjon | Hydraulic Valve Systems Division Europe |
| Maksimal væsketemperatur | 70 |
| Merke | Parker |
| Minimum kinematisk viskositet | 20 |
| Tetningsmateriale | NBR |
| Kropp materiale | Steel |
| For væske type | Hydraulic Oil According to DIN 51524 |
| Maksimal driftstemperatur | 60 °C |
| Funksjon | Pressure Function |
| Monteringstype | Slip-in Cartridge |
| Bruksområde | Industrial Hydraulic |
| Konfigurasjon | With Orifice |
| Produkt serie | Seat Valve |
| Medier | Hydraulic Oil |
| Maksimalt driftstrykk | 420 bar |
| Vekt | 1.7 kg |
| Minimum driftstemperatur | -20 °C |
| Strømningshastighet | n/a |
| Maksimal strømningshastighet | 1350 L/min |
| Maksimal kinematisk viskositet | 400 |
| Aktiveringstype | Hydraulic Pressure |
| Minimum væsketemperatur | -25 |
| Maksimal trykk innstilling | n/a |
| Driftstype | n/a |
| Divisjon Kun fasettert | Hydraulic Valve Systems Division Europe |
| Parker def attributter | |
|---|---|
| Poppet stil | N/A |
| Funksjon | Directional function |
| Port tilkobling | NG40 |
| Merking | Standard |
| Poppet areal forhold | Poppet area ratio AA 96 % from AC |
| Åpning type | Plug |
| Poppet design | Closed, no poppet sealing |
| Sprekketrykk | 0.5 BAR |
| Tetningsmateriale | NBR |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | CE040C07N00N10 2-WAY SLIP-IN CARTRIDGE |
| Produktserie navn | 2-Way Slip-In Cartridge Valve - Series CE, CP |
| Opprinnelsesland | DE |
| Toll kode | 84812010 |
| Vekt | 1.7000 |
| Vekt måleenhet | KG |
