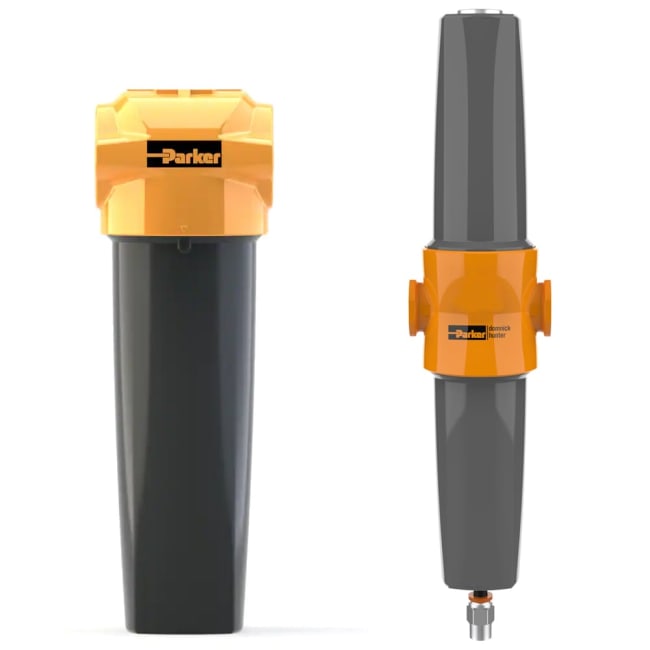

ACSPX010AGMX
ACSPX010AGMX
Produktnummer: 37533
EAN: PACSPX010AGMX
Lagerbeholdning:
inkl. mva.
| Parker desc attributter | |
|---|---|
| Teknologi | Filtration |
| Høyde | 7.09 inch |
| Industri | Industrial Manufacturing Equipment Food & Beverage Automotive Electronics Pharmaceuticals Medical & Dental |
| Filter type | Oil Vapour Reduction |
| Driftstemperatur | 35 to 122 °F |
| Driftstrykk | 15 to 290 psig |
| Produkt type | Compressed Air Filter |
| Divisjon | Gas Separation and Filtration Division EMEA |
| Merke | Parker |
| Mikron vurdering | n/a |
| Dybde | 65.0 mm |
| Bruksområde | Compressed Air and Nitrogen Gas Applications |
| Kompatibelt element | P010ACS |
| Produkt serie | OIL-X Grades ACS and AC |
| Bredde | 2.99 inch |
| Vekt | 1.8 lb |
| Trykk differensial | 0.9 psi Initial Dry, 100% Flow |
| Spesifikasjoner møtt | Fully tested - In accordance with ISO8573-2, 4 and 5 Filtration performance independently validated - by Lloyds Register. PED 2014/68/EU Fluid Group II |
| Konstruksjonsmaterialer | Die Cast Aluminium |
| Divisjon Kun fasettert | Gas Separation and Filtration Division EMEA |
| Parker def attributter | |
|---|---|
| Filter stadier | Single Stage |
| Maksimal strømningshastighet | 36 m³/h @ 7 barg (21 cfm @ 102 psig) |
| Tilkobling type | BSPP |
| Drenering | Manual |
| Port størrelse | ¼ inch |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | ACSPX010AGMX ACSPX010AGMX |
| Produktserie navn | OIL-X 'Point Of Use' Oil Vapour Reduction Filters |
| Opprinnelsesland | GB |
| Toll kode | 84213925 |
| Vekt | 0.8100 |
| Vekt måleenhet | KG |
