The modular design of the AC30-series variable speed drive provides the user with the flexibility to select the feedback, I/O and communication modules to perfectly match the exact requirements of their application. A wide range of communications, fieldbus, I/O and feedback options are available.
■ Input and Output Module:

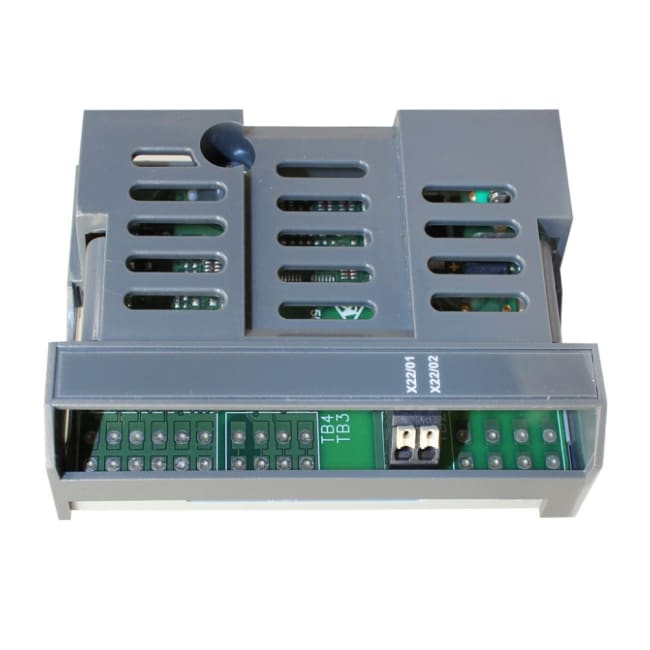

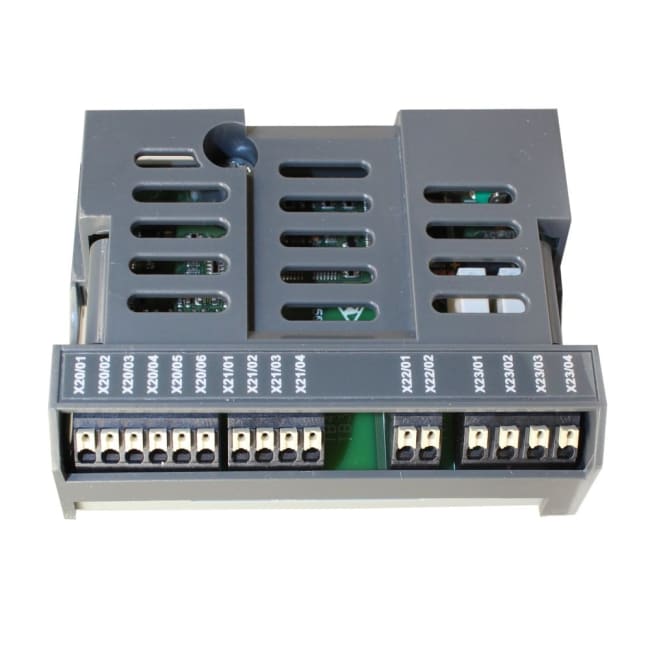

[7004-02-00] : Motor Thermistor Input Module
The isolated motor thermistor input module provides a means of monitoring motor temperature in order to protect the motor from a potentially damaging high temperature. By default the drive will trip if the motor exceeds a user-defi ned temperature threshold, thereby preventing motor temperature from rising further.
• Motor Thermistor Input : 1x motor thermistor input
• Thermistor Compatibility : PTC, NTC, KTY
• Thermistor Resistance Range : 0 - 4.5 kΩ
| Parker def attributter |
| Funksjon |
[7004-02-00] : Motor Thermistor Input Module |
| Kompatibel serie |
AC30 |
| Produkt type |
Input/Output Module |
| Parker desc attributter |
| Divisjon Kun fasettert |
Electric Motion and Pneumatic Division - Europe |
| Parker |
| Eske antall |
1.0000 |
| Beskrivelse |
AC30V THERMISTOR OPT CARD ELECTRONIC COMPONENTS |
| Produktserie navn |
Communication, Feedback and I/O Module Options - for use with Parker AC / DC Drives |
| Opprinnelsesland |
DE |
| Toll kode |
85049090 |
| Vekt |
0.1800 |
| Vekt måleenhet |
KG |
