20F-46-0750-BF

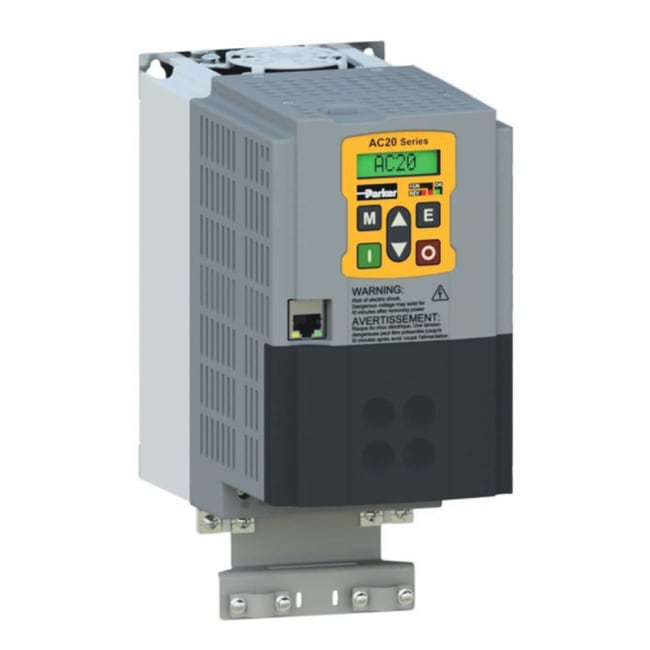

AC20 3P 400V 37kW C3 Filter Fr 6 Three Phase AC Inverter
Produktnummer: 14469
EAN: P20F-46-0750-BF
Lagerbeholdning:
inkl. mva.
The AC20F Advanced Hydraulic Purpose Drive is a highly featured yet economical solution for general purpose motor control applications.
The AC20F Advanced Compact Drive is a highly featured yet economical solution for general purpose motor control applications. The AC20F provides speed or torque control in the power range from 1.5 kW to 180 kW. Its compact dimensions accommodate many features normally associated only with system drives, including sensorless vector mode for AC induction motor control, encoder feedback and IO expansion cards, Safe Torque Off, and an onboard Ethernet port that supports major industrial Ethernet protocols. AC20F provides the perfect solution for OEM machine builders looking for a compact, cost-effective drive without compromising on performance.
Markets:
• Industrial
• Machine tools
• Molding
Features:
• Integrated hydraulic functions
• Graphical key pad
• Integrated web server
• Sensorless vector control
• Safety torque off
• Software tool for configuration, commissioning, optimization, programming and maintenance
• Fieldbus communication with open standards:
- CANopen
- PROFIBUS
- PROFINET
- EtherCAT
- Ethernet IP
Benefits:
• Modular design with main device and optional cards - more flexibility and reduces stock
• Newly implemented power unit features for condition monitoring - oil level and temperature, filter condition
• Software DSE Lite - flexible cange of I/O (factory set), simple handling via function blocks
Markets:
• Industrial
• Machine tools
• Molding
Features:
• Integrated hydraulic functions
• Graphical key pad
• Integrated web server
• Sensorless vector control
• Safety torque off
• Software tool for configuration, commissioning, optimization, programming and maintenance
• Fieldbus communication with open standards:
- CANopen
- PROFIBUS
- PROFINET
- EtherCAT
- Ethernet IP
Benefits:
• Modular design with main device and optional cards - more flexibility and reduces stock
• Newly implemented power unit features for condition monitoring - oil level and temperature, filter condition
• Software DSE Lite - flexible cange of I/O (factory set), simple handling via function blocks
| Parker desc attributter | |
|---|---|
| Teknologi | Hydraulics |
| Filter type | EMC cat. C3 |
| Produkt type | AC Drive |
| Drive akse type | Single Axis Technology |
| Driftshøyde | up to 1000 m (derate 1% per 100 up to max. 2000m) |
| Programvare | Configuration: Parker Drive System Explorer (DSELite) |
| Maksimal driftstemperatur | 40 °C (derate possible up to 45°C max.) |
| Overbelastningsvurdering | 150 % for 60s |
| Utgangseffekt | 37 kW |
| Produkt serie | AC20F |
| Inntrengningsbeskyttelsesvurdering | IP20 |
| Kontroll moduser | Flow control |
| Vibrasjonsmotstand | < 0.5 g |
| Kommunikasjonsgrensesnitt | Profinet |
| Vekt | 14 kg |
| Minimum driftstemperatur | 0 °C |
| Ramme størrelse | 6 |
| Inngangsspenning | 400 VAC |
| Spesifikasjoner møtt | CE (EMC & LVD) |
| Strøm | 75 A |
| Frekvens | 0.5 to 590 Hz (output) |
| Bremsebryter inkludert | Yes |
| Divisjon Kun fasettert | Hydraulic Valve Systems Division Europe |
| Parker def attributter | |
|---|---|
| Ramme størrelse | 6 |
| Strøm | 75 A (37 kW) |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | AC20 3P 400V 37kW C3 Filter Fr 6 Three Phase AC Inverter |
| Produktserie navn | AC Advanced Hydraulic Purpose Drive Controller - Series AC20F |
| Opprinnelsesland | DE |
| Toll kode | 85044086 |
| Vekt | 14.0000 |
| Vekt måleenhet | KG |
