| Parker desc attributter | |
|---|---|
| Teknologi | Fluid & Gas Handling |
| Industri | Transportation |
| Produkt stil | Female JIC 37° - Swivel |
| Produkt type | Crimp Fittings No-Skive |
| Monteringslengde | 109 mm (see drawing legend A) |
| Port type | DKJ |
| Slange ID størrelse | -16 |
| Divisjon | Polymer Hose Division Europe |
| Tilkobling 1 type | Hose |
| Tilkobling 1 størrelse | 1 inch Hose I.D. |
| Tilkoblingsstørrelse | 1-5/16"-12 inch Thread |
| Kropp materiale | Steel |
| For væske type | Petroleum Hydraulic Fluids (Petroleum Base) |
| Port størrelse | 1 inch |
| Bruksområde | General Industrial |
| Konfigurasjon | Hose to Port |
| Dråpe lengde | 56 mm (see drawing legend E) |
| Tilkoblingslengde | 68 mm (see drawing legend B) |

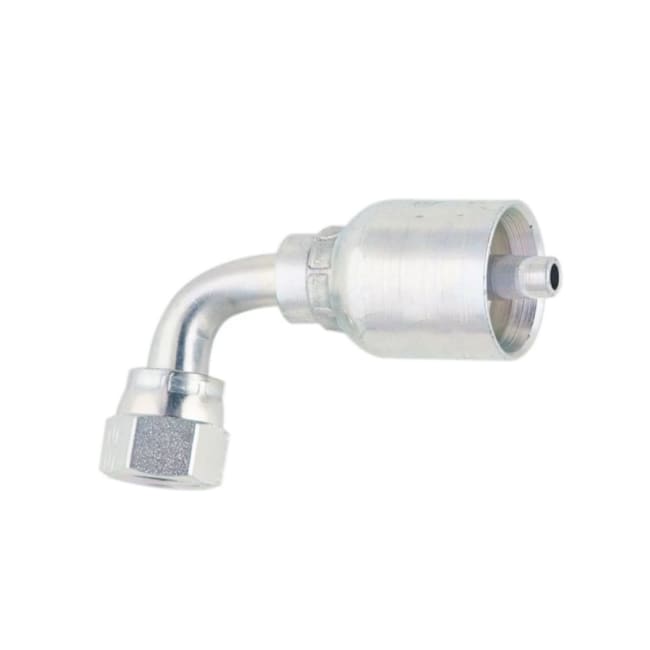

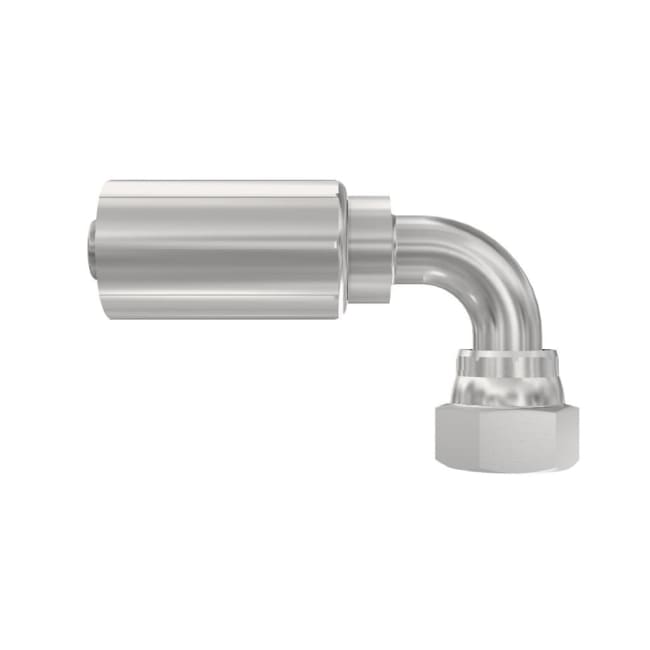

| Form | Elbow 90° Short Drop |
| Flens størrelse | n/a |
| Bak opp sekskant størrelse | n/a |
| Tilkobling 2 type | Swivel |
| Ansvarsfraskrivelse | The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The u |
| Mutter sekskant størrelse | 38 mm |
| Spesifikasjoner møtt | ISO 12151-5-SWES |
| Tilkobling 2 størrelse | 1-5/16"-12 inch Thread |
| Slange indre diameter | 1 inch |
| Konstruksjonsmaterialer | Steel |
| Banjo port diameter | n/a |
| Sekskant størrelse | 1-1/2 inch (see drawing legend W) |
| Divisjon Kun fasettert | Hose Products Division |
| Parker def attributter | |
|---|---|
| Form | Elbow 90° - Short Drop |
| Produkt stil | Female JIC 37° - Swivel |
| Port tilkobling | 1" |
| Sekskant type | Inch |
| Slange ID størrelse | -16 |
| Konstruksjonsmaterialer | Steel |
| Tilkobling 2 type | Female JIC 37° - Swivel |
| Tilkobling 2 størrelse | 1" |
| Kropp materiale | Steel |
| Parker | |
|---|---|
| Eske antall | 10.0000 |
| Beskrivelse | 43-F-S-JIC 37-90S |
| Produktserie navn | Crimp Style Hydraulic Hose Fitting - 43 Series Fittings |
| Opprinnelsesland | US |
| Toll kode | 8412909085 |
| Vekt | 1.1500 |
| Vekt måleenhet | LB |
