797ST-20
797ST-20
Produktnummer: 111084
EAN: P797ST-20
Lagerbeholdning:
inkl. mva.

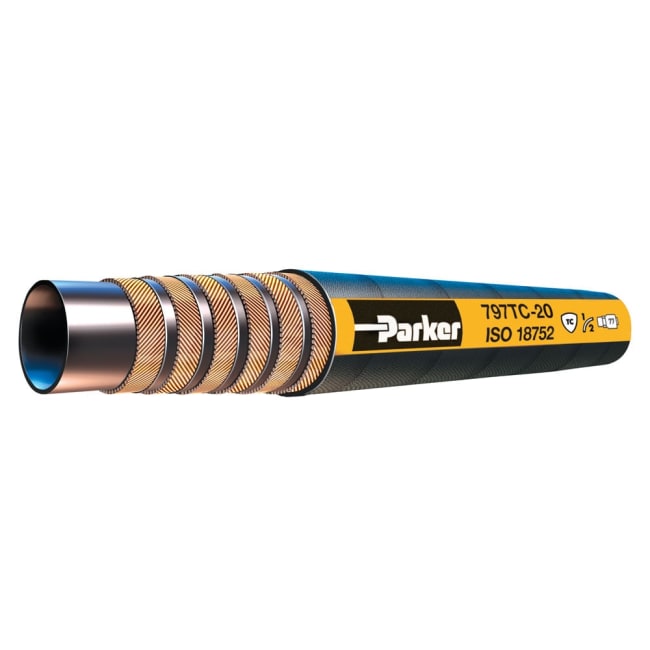

Part of the GlobalCore line of robust yet lightweight hydraulic hose, Parker’s 797 hose is an easy-to-bend, easier-to-install 6000 PSI constant working pressure hose.
Parker’s 797 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 6,000 PSI in all sizes. The 797 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 797 hose is designed, built and tested to the ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.
Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• 6,000 PSI constant working pressure in all sizes
• Less hose weight than SAE spiral
• Twice the impulse/life for a longer useful life of the hose
• Flex impulse tested to provide a superior hose in both performance and service life
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• 6,000 PSI constant working pressure in all sizes
• Less hose weight than SAE spiral
• Twice the impulse/life for a longer useful life of the hose
• Flex impulse tested to provide a superior hose in both performance and service life
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
| Parker def attributter | |
|---|---|
| Slange deksel type | SuperTough |
| Slange ID størrelse | -20 |
| Parker desc attributter | |
|---|---|
| Ytre diameter | 44.9 mm |
| Innvendig diameter | 31.5 mm |
| Maksimal driftstemperatur | 125 °C |
| Bruksområde | Petroleum Base Hydraulic Fluids |
| Slange innerrør materiale | Proprietary Synthetic Rubber Compound |
| Slange forsterkningsmateriale | 4 or 6 Spirals of Steel Wire |
| Medier | Petroleum Hydraulic Fluids |
| Maksimalt driftstrykk | 42 MPa |
| Nominell slange indre diameter | 31 mm |
| Størrelse | -20 |
| Vekt | 2.89 kg/m |
| Minimum driftstemperatur | -40 °C |
| Kompatibel kobling | 77 Series |
| Spesifikasjoner møtt | MSHA TC, ST & CP covers only |
| Dekselmateriale | Synthetic Rubber Abrasion Resistant |
| Minimum bøy radius | 225 mm |
| Divisjon Kun fasettert | Hose Products Division |
| Parker | |
|---|---|
| Eske antall | 140.0000 |
| Beskrivelse | 1 1/4"-18752 DC-6000 PSI |
| Produktserie navn | Hydraulic Constant Working Pressure Hose 6000 PSI - GlobalCore 797 Hose |
| Opprinnelsesland | US |
| Toll kode | 4009210000 |
| Vekt | 2.0320 |
| Vekt måleenhet | LB |
