EAF68175-1

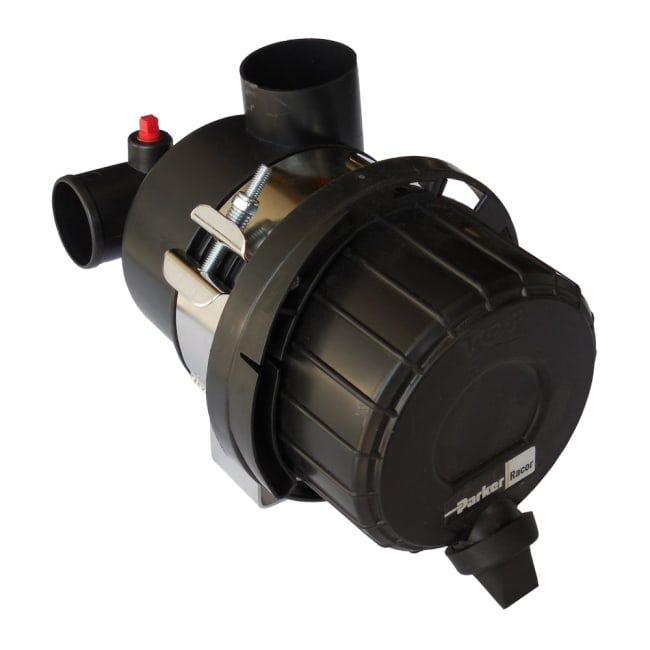

4,5` Double Air Cleaner
Produktnummer: 24393
EAN: PEAF68175-1
Lagerbeholdning:
inkl. mva.
Racor EAF Composite Heavy Duty Air Filter Series – About:
Racor EAF series air filters offer a three stage filtration system which incorporates static pre-cleaning action into a dual element filter canister. They are available with straight or 90 degree outlet, a primary element only, or with primary and safety element. They can be mounted horizontally or vertically and rotated in any direction.
Racor EAF Composite Heavy Duty Air Filter Series - How They Work:
Air enters the pre-cleaner portion though static vanes causing the air to spin. As the air spins, centrifugal force separates dust, dirt, insects, rain, and snow from the air stream. Racor’s EAF air filters with integral pre-cleaners are designed and built to meet the requirements for hard working gasoline and diesel powered engines. Racor EAF air filters are the economical choice for your heavy duty applications.
Racor EAF Composite Heavy Duty Air Filter Series - Additional Features and Benefits:
- Flow Range: 65 to 1060 cfm (1.8 to 30 m3/min) (Depending on product selected)
- Durable high strength polymer composite construction
- Working temperature from -40°C to100°C (-40°F to 212°F)
- Rust, corrosion, and UV resistant
- Industry standard radial seal filter,
- Spring loaded mounting bracket
- Tool-less service
Racor EAF series air filters offer a three stage filtration system which incorporates static pre-cleaning action into a dual element filter canister. They are available with straight or 90 degree outlet, a primary element only, or with primary and safety element. They can be mounted horizontally or vertically and rotated in any direction.
Racor EAF Composite Heavy Duty Air Filter Series - How They Work:
Air enters the pre-cleaner portion though static vanes causing the air to spin. As the air spins, centrifugal force separates dust, dirt, insects, rain, and snow from the air stream. Racor’s EAF air filters with integral pre-cleaners are designed and built to meet the requirements for hard working gasoline and diesel powered engines. Racor EAF air filters are the economical choice for your heavy duty applications.
Racor EAF Composite Heavy Duty Air Filter Series - Additional Features and Benefits:
- Flow Range: 65 to 1060 cfm (1.8 to 30 m3/min) (Depending on product selected)
- Durable high strength polymer composite construction
- Working temperature from -40°C to100°C (-40°F to 212°F)
- Rust, corrosion, and UV resistant
- Industry standard radial seal filter,
- Spring loaded mounting bracket
- Tool-less service
| Parker desc attributter | |
|---|---|
| Utløps tilkobling størrelse | 10.2 cm |
| Kompatibel monteringsklemme | Included |
| Monteringsposisjon | Horizontal or Vertical |
| Ytre diameter | 10.6 inch |
| Merke | Racor |
| For væske type | Engine Air |
| Bruksområde | Mobile gas and diesel engines |
| Utgangseffekt | n/a |
| Kompatibelt element | Primary: EAPE68332 Safety: EASE68372 |
| Produkt serie | Cartridge Air |
| Lengde | 48.5 cm |
| Inkludert tilbehør | See literature on Product Support tab |
| Innløps tilkobling størrelse | 11.4 cm |
| Divisjon Kun fasettert | Engine Mobile Original Equipment Division |
| Parker def attributter | |
|---|---|
| Strømningsområde | 375 cfm (10.6 m3/m) |
| Forrengjøring | n/a |
| Bruksområde | Heavy Dust |
| Maksimal strømningshastighet | 400 cfm (12 m3/m) |
| Konstruksjonsmaterialer | Engineering Plastic |
| Tilkobling type | Straight |
| Filter element type | Primary Air and Safety Filters |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | 4.5"DOUBLE AIR CLEANER |
| Produktserie navn | Cartridge Engine Air Filters – Racor ECO, AF, and EA Series |
| Opprinnelsesland | IT |
| Toll kode | 8421310000 |
| Vekt | 0.0000 |
| Vekt måleenhet | LB |
