HLS2V

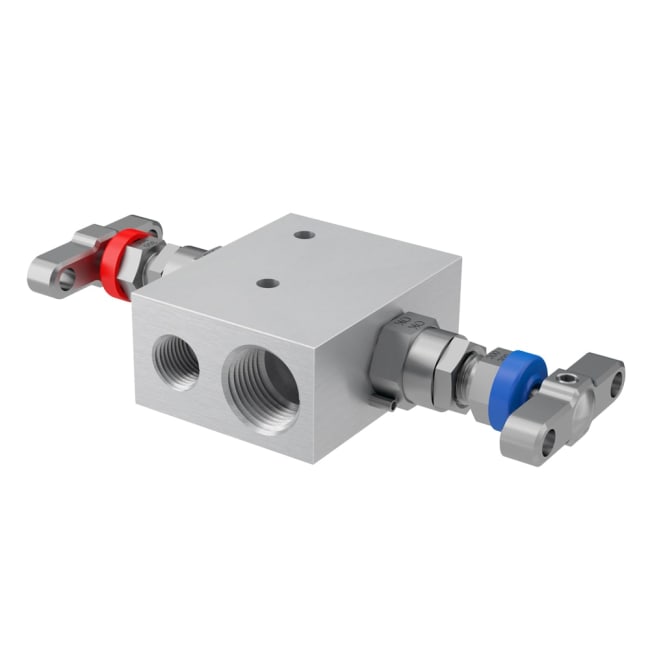

2 Valve Manifold
Produktnummer: 26139
EAN: PHLS2V
Lagerbeholdning:
inkl. mva.
| Parker def attributter | |
|---|---|
| Ventil størrelse | 1/4 Inch NPT Female |
| Kropp mønster | Short Pattern |
| Kropp type | Flat Barstock |
| Driftstrykk | 6000 PSI / 414 BAR |
| Antall ventiler | 2 |
| Utløps tilkobling | 1/2 Inch NPT Female |
| Oppfyller sertifiseringer | N/A |
| Tilleggsvalg | N/A |
| Alternativer | N/A |
| Pakningsmateriale | PTFE |
| Innløps tilkobling | 1/2 Inch NPT Female |
| Sete materiale | Metal to Metal |
| Parker desc attributter | |
|---|---|
| Tilleggsvalg | Contact Parker for the following options: Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF |
| Monteringsalternativ | Carbon Steel brackets and bolts, Stainless Steel brackets and bolts |
| Driftstemperatur | PTFE packing: From -54°C to +260°C, From -65°F to +500°F Graphite packing: From -54°C to +538°C, From -65°F to +1000°F |
| For væske type | General Gaseous and Liquid Media |
| Divisjon Kun fasettert | Instrumentation Products Division |
| Konfigurasjon | Isolate and Vent |
| Kropp materiale | 316 Stainless Steel |
| Parker | |
|---|---|
| Eske antall | 1.0000 |
| Beskrivelse | 2 VALVE MANIFOLD 1/2NPT FEM |
| Produktserie navn | 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series |
| Opprinnelsesland | GB |
| Toll kode | 84818059 |
| Vekt | 0.8020 |
| Vekt måleenhet | KG |
